Building entries Single building entriesThrough the wall - wall already exists (open construction)

Membrane injection system

for buildings with a basement

MIS60D E SET

Add to wish list

Membrane injection system - for buildings with a basement

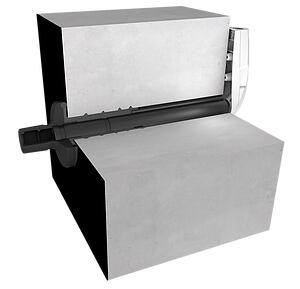

universal building entry with membrane injection system for core holes in the most common types of wall
Controlled resin discharge through slotted membrane hose
sealing lips ensure gentle seal for cables/pipes

For existing buildings with a basement for reliable sealing of standard water pipes.

Membrane injection system - for buildings with a basement

Facts

Advantages:

Quick to assemble in just a few minutes
No repair of the basement waterproofing in accordance with DIN 18533 necessary
Variable sealing configuration thanks to various sealing inserts

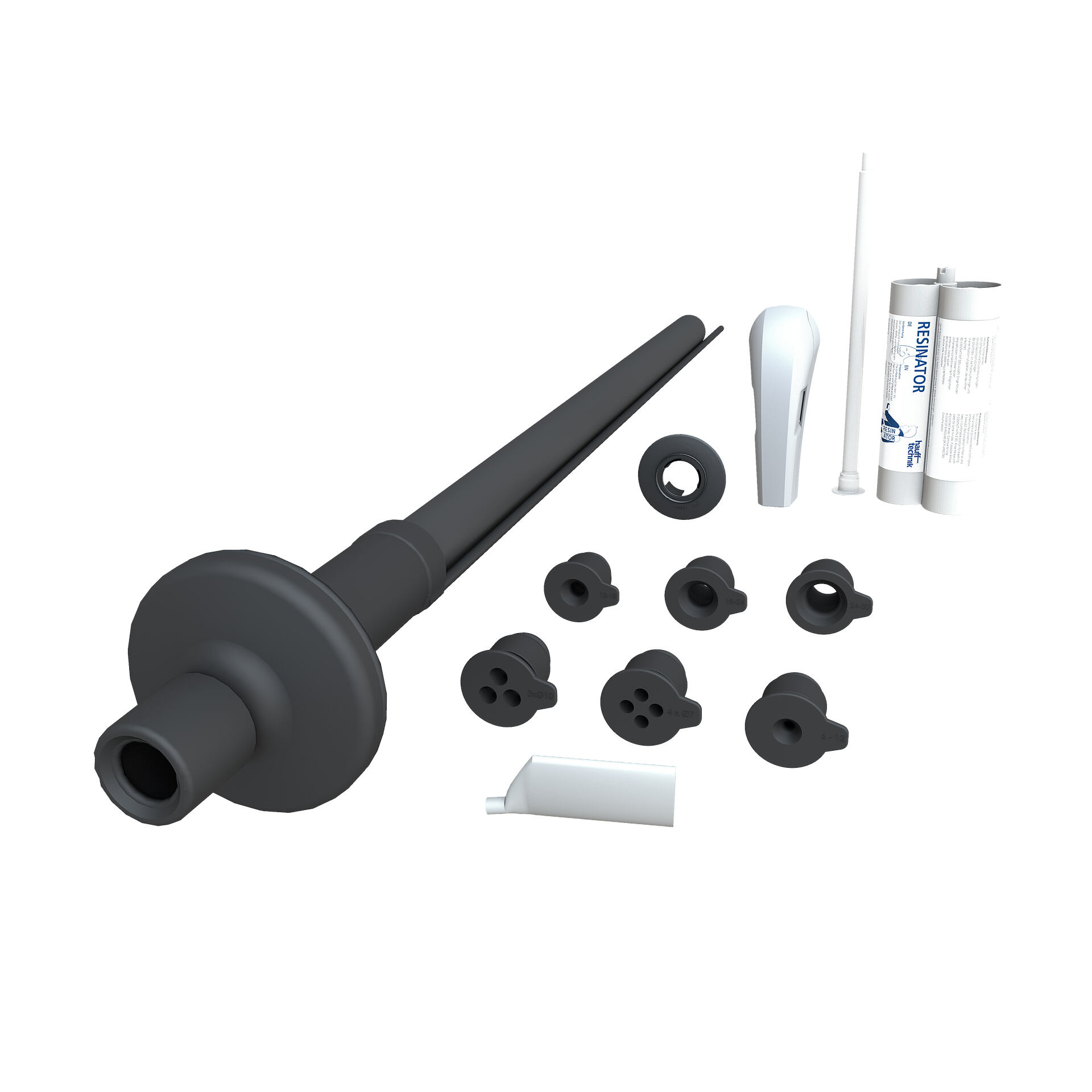

Scope of delivery:

1 piece of MIS60D including pre-mounted seal insert
1 piece of wall terminator element
1 piece of wall rosette
1 piece of 2-component resin Resinator, 150 ml

Dimensions:

For core drills Ø: 62 - 65 mm
For wall thicknesses: from 200 to 1200 mm

Application range:

Water exposure class DIN 18533: W1-E and W2.1-E
Waterproof concrete stress class 1 and 2

Material:

Flange, seal insert, counter-bearing and adapter: EPDM
Sealing tape: butyl
Resin injection hose: PE
Wall rosette: PE
Pipe: PVC-U
Wall terminator element: Flame-retardant polycarbonate

Tightness:

gastight and watertight to 1.0 bar
radon-proof

Downloads

Brochures

Installation instructions

MIS60D (PDF, 921KB)

Test reports

Data sheet & tender specification

For download of data sheet and tender specification please configurate the product in the section below and download via the symbol Download symbol

Variants

Number of cables/medium	suitable for medium pipe OD (mm)	Wall thickness (mm)	Article code	Article number	GTIN
1 1 1 1 3 4	24-30 18-24 12-18 6-12 10 5-7	200 - 900	MIS60D E BL1000 SET1	3030453433	4052487240000	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications GAEB XML (.x81) GAEB 90 (.d81) Text view (.txt) Word (.docx) Quantity: Quantity:
1 1 1 1 3 4	24-30 18-24 12-18 6-12 10 5-7	900 - 1.200	MIS60D E BL1300 SET1	3030453449	4052487240017	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications GAEB XML (.x81) GAEB 90 (.d81) Text view (.txt) Word (.docx) Quantity: Quantity:

* Price on request
Product group 6: Membrane injection systems
Estimated dispatch time approx.: 2-3 working days, subject to prior sale

Accessories

2-component resin Resinator - expansion resin

2-component resin Resinator

expansion resin

Cartridge gun - for side-by-side cartridges

Cartridge gun

for side-by-side cartridges

(Required for installation)

Quick tensioning device - for MIS 60

Quick tensioning device

for MIS 60

(Required for installation)
